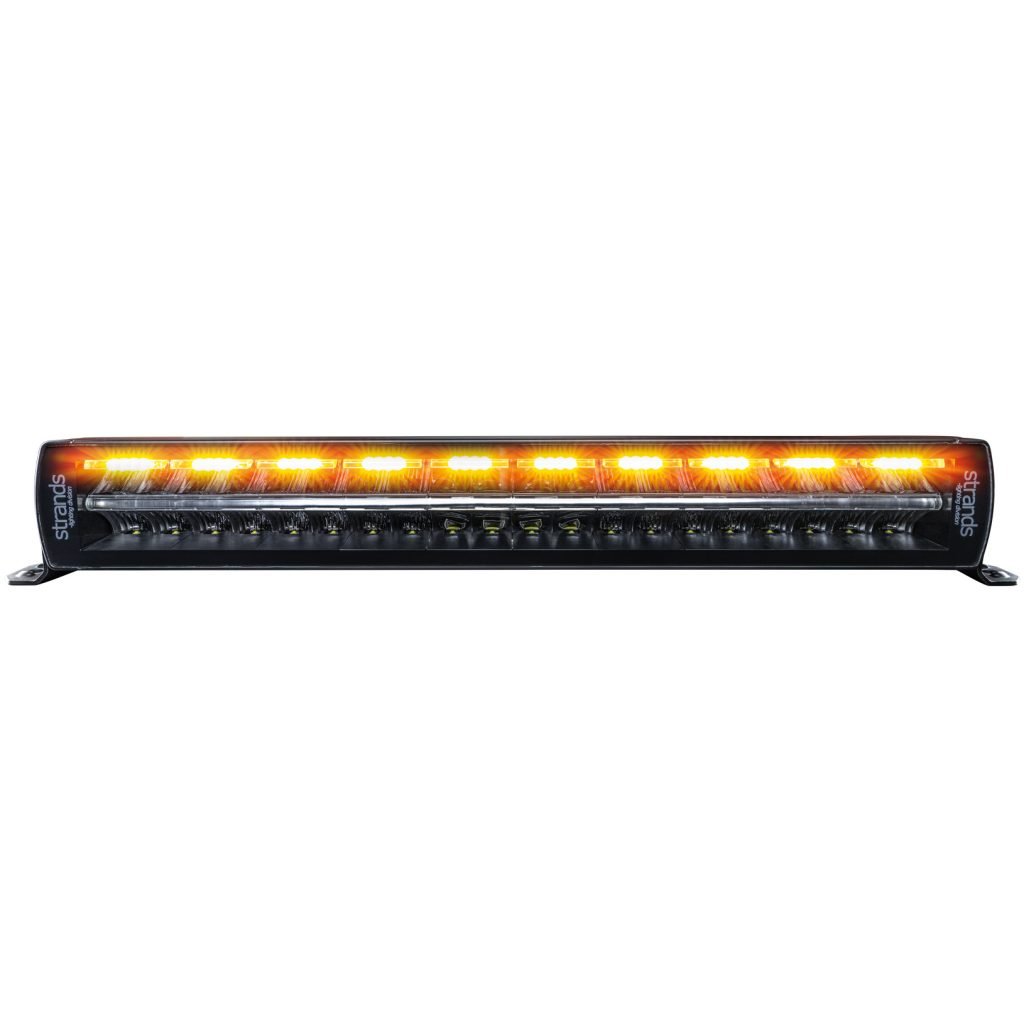

SIBERIA NG DR 22"

E-Merket
3i1 Parklys, Fjernlys og Varsellys i samme.

https://www.youtube.com/watch?v=ndaautJ8SrI
https://www.youtube.com/watch?v=8_YqRFvhdh0

Type of lamp LED
Type of LED Osram
PCS LED´s 40
Voltage (V DC) 9-35V DC
Theoretical effect (w) 12V 200
Theoretical effect (w) 24V 200
Consumption (w) 12V 92.4
Consumption (w) 24V 92.4
Functions High beam. dual position light. warning light
Theoretical lumen 16000
Actual lumen 5911
1 LUX @ m 432
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam pattern Combo
Position light Yes. amber and white
Connection Cable
Cable length (mm) 2500
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 562
Depth (mm) 71.6
Height (mm) 76
Height including bracket (mm) 89
Operating temperature -20°C – +45°C
ADR-approved No
E-approved Yes
According to regulation ECE R112. R7.R65
Reference number 45
EMC ECE R10
